Autel IM508 Adds New Key to 2010/2013 Bentley Continental GT Speed via Dump Mode

 Is it possible to use Autel IM508 to add new key or do all keys lost on 2010 & 2013 Bentley Continental GT Speed?

The answer is Yes. It is supported, but you have to do it through dump mode, which will require you to to remove the Kessy module from the vehicle, then read the IMMO data with programmer which can parse out the password for key programming.

The device should be used is IM508+ XP400 or Autel IM608. XP200 doesn’t support the function.

You can refer to the "dump mode " part case study of the attachment

1.VolkswagenPassat B6 2008 read CS and PINfrom comfort module all key lost

take the case 2 as an example

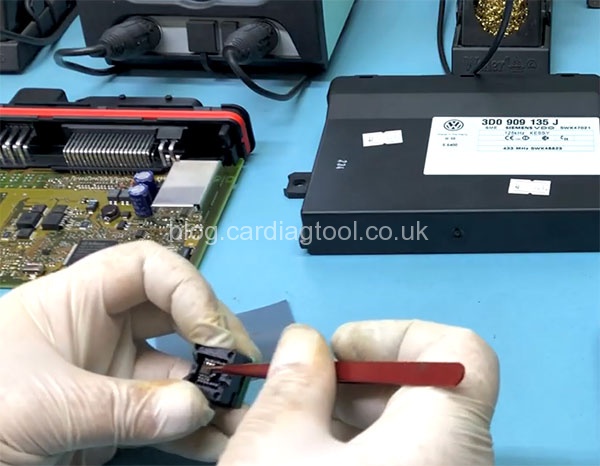

Step 1: Unsolder the chip from the original Porsche module and install on the EEPROM adapter

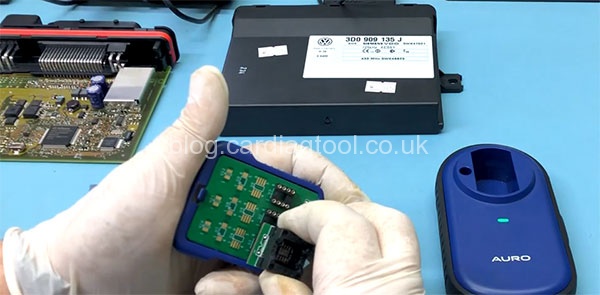

Then plug the adapter with programmer

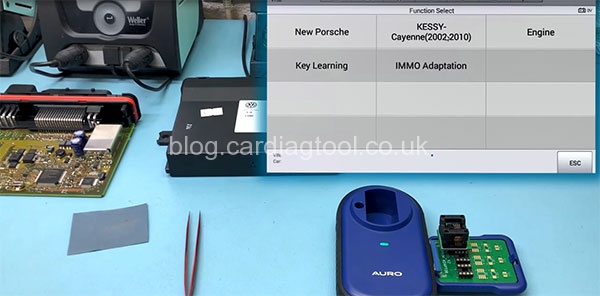

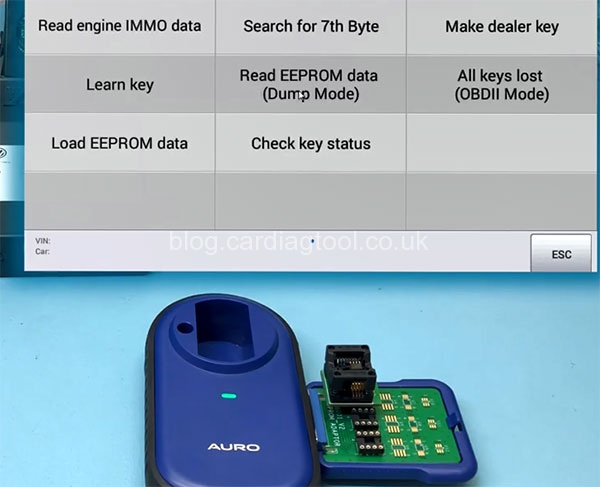

Step 2: Select “Kessy- Cayenne (2002-2010)”-> “Read EEPROM data (Dump Mode)”

Step 3: Then pay attention to the following prompt:

For this operation, please use the programmer to read chip data. The ongoing process is non-interruptible, and improper operation will cause damage to the chip. Please read the programmer instructions carefully before operation. Damaged chips cannot be restored.

Step 4: Read the instruction

De-energize the instrument. Remove the KESSY chip and place it on the programmer.

Please note the direction and make sure the chip is correctly placed. Press [OK] after operation is completed.

Step 5: Wait a moment to connect the programmer

Step 6: Reading EEPROM data...

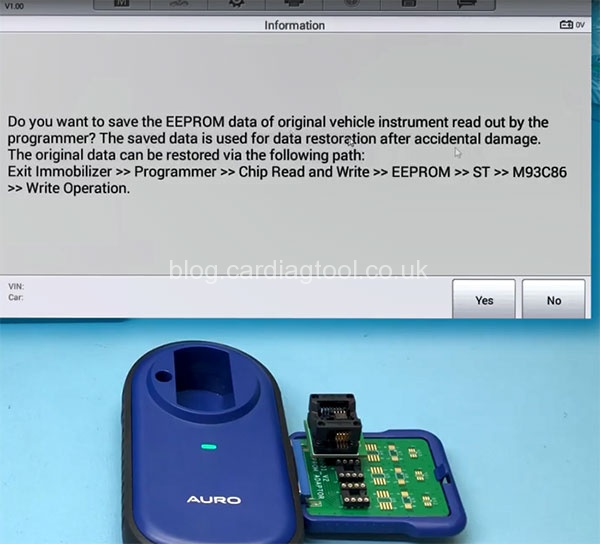

Step 7: Follow the prompt to save the EEPROM data

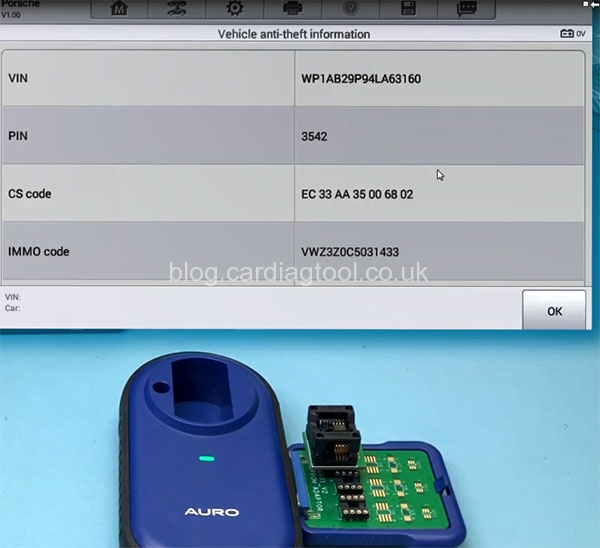

Then you can see the related vehicle anti-theft info incl. VIN, PIN, CS code and IMMO code, etc.

That’s all!
